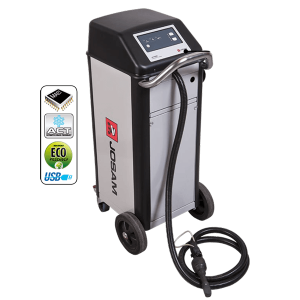

JOSAM – JH1000

Description:

JH1000 is convenient for lighter straightening and loosening of coarser machine parts such as nuts and bolts, bushings and bearings as well as smaller chassis. Our mid-range  model is a flexible but powerful induction heater adapted for truck and construction machinery workshops. JH1000 is designed for improved movability and has good reach thanks to its long hose package and cables. The heating effect can be controlled through the  control panel’s 5 output levels. Efficient cooling is provided via a fan and condensor unit in a closed water cooling system.

• Mains supply: 380-400 V, 3 Ph+PE, 50/60 Hz, 16 A
• Protection class: 200 V, 3 Ph+PE, 50/60 Hz, 32 A
• Working frequency: IP 21
• Output stages: 14-30 kHz
• Input power: 5 11 kW
• Output power- induction power: 10 kW
• Induction cable: 6 m
• Cooling system: Water cooled
• Continuous operating time: 40 minutes*
• Weight: 105 kg with full tank
• Water tank: 35 liters
• Size (L×W×H): 757×557×1166 mm

*at 20°C ambient temperature at max. power
